Custom Heads

Uni-Form Components Corp. currently has over 18,000 tooling setups and makes our own custom tooling in-house.

Paired with 7 Hot Forming and 10 Cold Forming machines, we can produce any custom size head to meet your requirements. Diameters from 4” OD up to 900” OD can be produced in thicknesses from ¼” up to 12” thick.

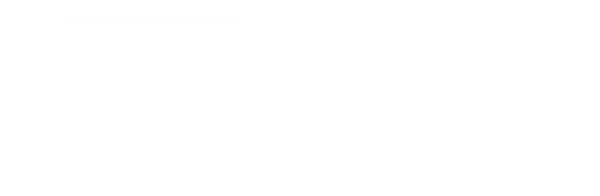

ASME 2:1 Elliptical

Hot Formed:

Diameter: 6-5/8" - 150"
Thickness: 3/16" - 9-1/2"

Cold Formed:

Diameter: 6-5/8" - 318"
Thickness: 3/16" - 2-1/2"

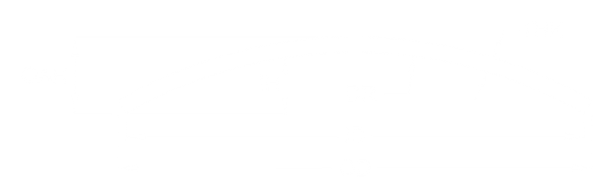

Dished Only

Hot Formed:

Diameter: 3" - 184"
Thickness: 3/16" - 9-1/2"

Cold Formed:

Diameter: 3" - 260"
Thickness: 3/16" - 6"

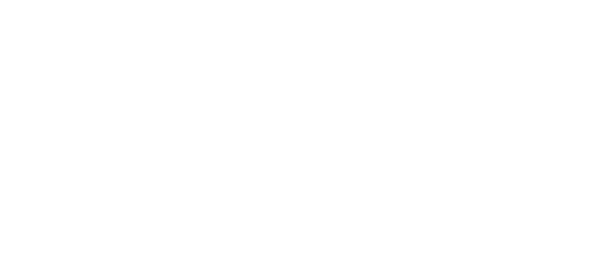

Hemispherical

Hot Formed:

Diameter 6-5/8" - 126"
Thickness: 3/16" - 9-1/2"

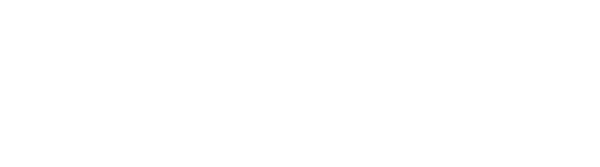

ASME Flanged & Dished

Hot Formed:

Diameter: 6-5/8" - 156"
Thickness: 3/16" - 9-1/2"

Cold Formed:

Diameter: 6-5/8" - 318"
Thickness: 3/16" - 2-1/2"

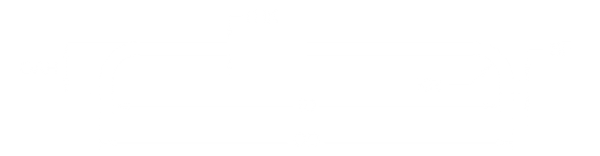

Flanged Only

Hot Formed:

Diameter 6" - 156"
Thickness: 3/16" - 9-1/2"

Cold Formed:

Diameter 6" - 318"
Thickness: 3/16" - 1-1/2"

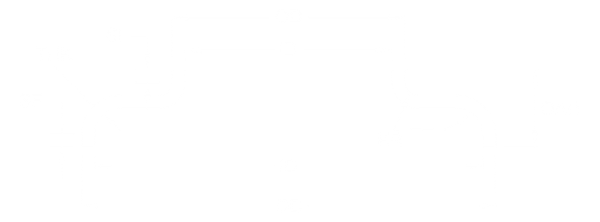

Flanged & Flued

Hot Formed:

Diameter: 6" - 118"
Thickness: 3/16" - 9-1/2"

Cold Formed:

Diameter: 12-3/4" - 318"
Thickness: 3/16" - 2-1/2"

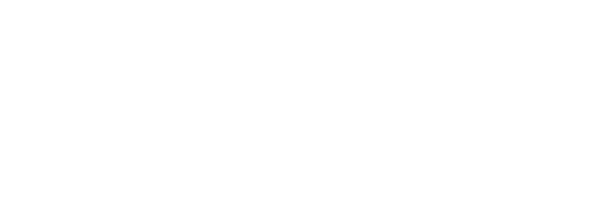

Flared & Dished

Hot Formed:

Diameter: 6" - 184"
Thickness: 3/16" - 9-1/2"

Cold Formed:

Diameter: 6" - 184"
Thickness: 3/16" - 2-1/2"
